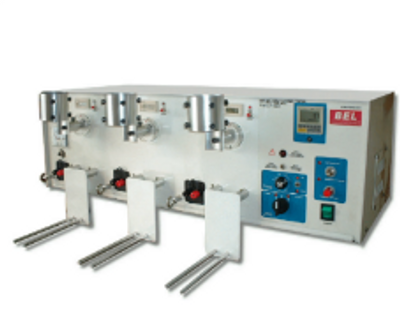

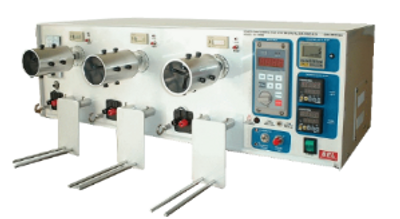

Power Cord Flexing Tester

---

Power Cord Flexing Test System is professional in testing and Measuring the quality of the power cords. This is an international test equipment cause it can testing UL/ IEC/ VDE/GS international safety standard in one machine. It has been using in many large and famous laboratory such as Conair, Intertek Testing Service, UL International etc. There are total three or six testing groups for the user who can test three or six samples in same time. Test Result: PASS: The machine will be stop operation automatically and the pass lamp will be light when finished all the test requirement. Test cycle will be show on the counter for reference. Remember to reset the counter to zero before you start to test another power cord. FAIL: If the power cord was broken in the test procedures. The fail indicator lamp will be light to remind you the test sample was fail. Also the test cycle will be shown on the counter for reference.

• Suitable for UL/ IEC/ VDE/GS Test Standard in one machine
• Test From 0~540º  Degree in one machine
• 3/ 6/ 12 Independent Test Groups
• 0~70 Flexing / Min. Adjustable
• Machine Auto. Stop Preset
• Test fail buzzer and lighting reminder
• Test result data record display

• Brand: BEL
• Model: FT903H / FT906H / FT9012
• Testing Power Input: 120~240V AC 50/60Hz. Max Test Current 15A
• Test Speed : 0~70 Flexing / Min.
• Test Angle : From 90°~180°~360°~540° Variable angle adjustable
• Test Group : 3 /6 /12 Working Groups
• When 180 degree test, the angel of fixture will be fix at :

                         (1) 9 o'clock to 3 o'clock;   (2) 12 o'clock to 6 o'clock

• Test Result Data Show Function & Auto. Stop Syste

• Accessory:
  FT-903H : Fixture 6 pcs / Test Protect Stick 12 pc
  FT-906H: Fixture 12 pcs / Test Protect Stick 24 pcs
  FT-9012H: Fixture 24 pcs / Test Protect Stick 48 pcs
• Dimension:
  FT-903H : 750mm(L) x 300mm(W) x 250mm(H)
  FT-906H: 1450mm(L) x 250mm(W) x 350mm(H)
  FT-9012H: 1500mm(L) x 500mm(W) x 1200mm(H)
• Weight:
  FT-903H : 75 KGS
  FT-906H : 130 KGS
  FT-9012H : 260 KGS​
