Hair Dryer Temperature Test System

---

Hair Dryer Temperature Test System is professional instrument in measuring the temperature of the Hair Dryer in working status. It was totally match UL859 International standard. Thermocouple Type:"J" or "K ", 30AWG, Thermocouple Length: 1.2M. It was connected with Temperature Data Logger combines precision measurement capability with flexible signal connections for your production and development test system. Independent 60 test channels configuratain with temperature sensor function. The operator can install the software to your computer and connect with RS-232/USB socket to measuring the data through the intuitive use interface panel. It is a Windows-based application designed to make easy to use the Temperature Data Logger with your PC for gathering and analyzing measurements. The software is included when you order the product. Use this software to setup your test, acquire and archive measurement data, and perform real-time display and analysis of your incoming measurements. It can 24 hours in auto test until you want to finish the test. It has been use in many famous laboratory in USA, Italy, Holland, Germany, Singapore, England, China, etc. Make your Temperature test in easy way now.

• For UL859 Standard
• Temperature test from 0~1372 ºC
• Unlimited test time
• Real time temperature sensor
• RS-232/USB socket
• Test data display in personal computer
• Top 5 higher temperature display
• PC window display
• Software included.

• Brand: MORGAN
• Model: TG-53PC
• Test Channels : 60 channels
• Test Cycle: 5.0 sec.
• Accuracy: 0.1% +/-0.5 ºC / ºF
• Data Resolution: 0.1 ºC / ºF
• PC Connection: RS-232 / USB (1.1 version)
• Power: AC 120V 60Hz 2A
• Test time: unlimited
• PC System: Window 98, 2000, XP, Win7, Win8, Win10.
• PC Display Print Out: Temperature Graphic, Chart, Test Result Data Figure​

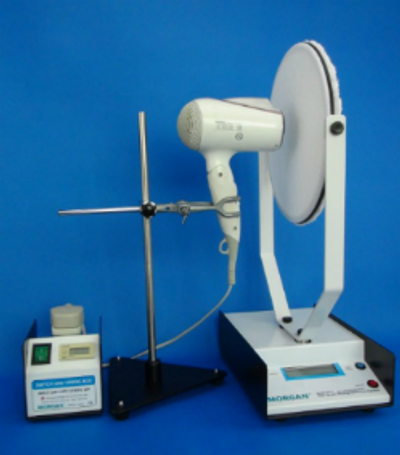

 Hair Dryer Drying Rate Test System Model: DR-01 is professional test equipment for household test laboratory. It was fully compliant the requirements of international standard IEC 61855 electrical appliances for household. It has waterproof steel balance with high speed test result display. Under the specified testing procedures and ambient conditions of IEC61855, you can measurement the drying rate of the test sample in easy way. The system can let you more understand the energy efficiency of the hair dryer and improve your product design. It has been using in many large and famous household test laboratory in USA, England, China, Italy, Holland, Germany, Australia, Turkey, Singapore, and Taiwan and over hundred enterprises.

• Totally match international standard IEC 61855
• Waterproof Balance Design
• With switch timing box
• High speed test result display
• Test timer display 99h59m59s
• With IEC 61855 Standard test cloth 6pcs.
• Used by many famous laboratories in global

• Brand: MORGAN
• Model: DR-01
• Suitable for international standard IEC 61855
• Aluminum Ring :
• Outside Diameter : 260 +/- 1mm
• Inner Diameter: 245 +/- 1mm
• Width : 10mm
• Rubber Ring: d=5mm
• Waterproof Steel Shellb Balance
• Display Resolution: 0.01g quick display
• Switch Timing Box:
• In / Out : 100~240V. 50/60Hz. 10A.
• Timer : 99h59m59s
• IEC 61855 Standard Test Cloth x 6pcs
• Calibration Weight: 10g x 1pc.
• Stopwatch x 1pc.​​
